Bluetooth Printer Export to the EU Market: A Complete Guide to CE Compliance

Key Takeaway:​ CE is not a single certificate — it is a compliance framework. A Bluetooth printer must simultaneously satisfy requirements for Radio Equipment (RED), Electrical Safety (LVD), Electromagnetic Compatibility (EMC), and Restriction of Hazardous Substances (RoHS), maintain a complete technical file, and sign an EU Declaration of Conformity (EU DoC) before the CE marking may be affixed.



1. Core Certification Framework

1.1 CE Marking (Mandatory)

Within the CE framework, a Bluetooth printer is mainly subject to the following directives, which must be fulfilled simultaneously:

① RED — Radio Equipment Directive 2014/53/EU

• Scope:​ All products with wireless communication functions such as Bluetooth or Wi-Fi.

• RF performance testing

  • Frequency range:​ Confirm the Bluetooth operates within the 2.4 GHz ISM band (2400–2483.5 MHz).

  • Transmit power:​ Maximum EIRP must not exceed 20 dBm (100 mW)​ to avoid interfering with other devices (refer to EN 300 328).

  • Duty cycle & frequency hopping:​ Verify compliance of mechanisms such as Adaptive Frequency Hopping (AFH).

• Electromagnetic Compatibility (EMC)

  • Immunity:​ Stability under electrostatic discharge (±8 kV contact discharge), radio-frequency field induced conducted disturbance (3 V/m field strength), etc.

  • Radiated emission:​ Whether spurious emissions in the 30 MHz–6 GHz range exceed limits (refer to EN 55032 / EN 55035).

② LVD — Low Voltage Directive 2014/35/EU (Electrical Safety)

• Applicable standard:​ The prevailing standard is now EN 62368-1​ (which has progressively replaced EN 60950-1).

• Clearance and creepage distances:​ High-voltage areas on the PCB (e.g., the power module) must meet the spacing requirements of the standard.

• Dielectric strength (hipot) test:​ Withstand 1500 V AC for 1 minute​ between the primary circuit and accessible parts.

• Battery safety:​ Lithium cells must comply with IEC/EN 62133-2​ and pass abuse tests such as overcharge and over-discharge (e.g., charging at 0.5C to twice the nominal voltage without fire or explosion).

③ RoHS 2.0 — Directive 2011/65/EU (Restriction of Hazardous Substances)

• Controlled substances:​ Lead (Pb), cadmium (Cd), mercury (Hg), hexavalent chromium (Cr VI), polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), plus four phthalates — 10 substance categories in total.

• Test methods:​ XRF screening (initial scan) followed by wet chemical analysis in an accredited laboratory (precise determination).
• Exemptions:​ e.g., the lead-in-solder exemption (≤0.1%), for which the exemption basis and supporting documentation must be kept on file.

④ Other potentially applicable regulations / directives

• ErP (Eco-design of energy-related products):​ Products supporting standby mode must meet standby power requirements (e.g., ≤0.5 W); the specific clauses of the applicable implementing regulation (e.g., (EU) 2019/2021) are subject to the latest official EU text.

• REACH Regulation (EC) No 1907/2006:​ A chemicals regulation​ (not a CE directive). It requires verifying whether SVHC (Substances of Very High Concern) content in materials such as plastic housings is ≤0.1%; where the notification obligation is triggered, an SCIP notification must also be completed.

• Regulations on packaging, batteries and WEEE may apply concurrently and should be assessed based on the product configuration.

2. Test Reports and Technical Documentation in Depth

2.1 Test Report Requirements

① RF test report (RED)

• Conducted emission:​ Measure disturbance voltage at the power port via a CDN (Coupling/Decoupling Network).

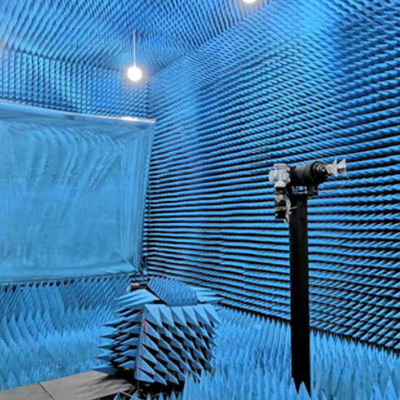

• Radiated power:​ Measure EIRP (Equivalent Isotropically Radiated Power) in an anechoic chamber to verify it is within limits.

• Receiver blocking:​ Verify that the bit error rate (BER) of the Bluetooth module under strong interfering signals remains ≤0.1%.

② Electrical safety test report (LVD)

• Fault simulation:​ e.g., short-circuiting the power output to verify that protective circuits such as fuses interrupt the current within the specified time (e.g., 5 seconds).

• Temperature rise test:​ After one hour of full-load printing, measure the surface temperature of critical components such as the motor driver IC to confirm it is ≤85 °C (or within the limits specified for the material/component).

③ Mechanical safety testing (where applicable)

• Paper feed mechanism:​ Simulate a paper jam to verify that protective functions such as automatic shutdown are triggered (refer to the relevant clauses of EN 62368-1 on mechanical hazards and protection against moving parts).

2.2 Technical File Checklist

Must contain:

• Circuit schematics:​ Annotated with key component parameters (Bluetooth chip model, filter specifications, etc.).

• BOM (Bill of Materials):​ Listing all material suppliers, together with RoHS compliance evidence (e.g., lead-free declarations issued by IC suppliers).

• User manual:​ Including safety warnings (e.g., "For indoor use only; avoid exposure to humid environments").

• EU Declaration of Conformity (EU DoC):​ Clearly stating the CE marking, product model, manufacturer name, and the physical address​ of the EU Authorised Representative / Responsible Person (a email address is not acceptable).

• Risk assessment report:​ Analysing the risk levels of hazards such as mechanical pinching and battery fire, along with the corresponding protective measures.


3. Certification Process (Timeline and Cost Considerations)

3.1 Process Steps

Note:​ Using an already-certified Bluetooth module (e.g., the Nordic nRF52 series) reduces RF test items and typically saves 30% or more​ on testing costs.

3.2 Critical Control Points

• Laboratory selection:​ Give priority to bodies with recognised EU qualifications (e.g., Notified Bodies such as TÜV Rheinland and Nemko, or laboratories accredited by them).

• Sample preparation:​ Provide 3 finished units​ (1 for testing, 2 as backups), which must be identical to the mass-production version.

• Failure and corrective action:​ If EMC testing fails, add ferrite cores or shielding cans and re-submit the samples.


4. Labelling and Market Compliance

4.1 CE Marking Requirements

• Dimensions:​ Minimum height of 5 mm, proportionally scaled, clearly visible and durable.

• Information to be shown:​ CE marking, product model, manufacturer name, and the physical address of the EU Representative / Responsible Person (e.g., "EU Rep: ABC GmbH, Berlin").

4.2 Responding to Market Surveillance

Focus of inspections

• Verifying the authenticity of the declaration of conformity and technical documentation (Notified Body credentials can be checked in the EU's NANDO​ database).

• Consistency between the actual product and the tested sample — replacing the Bluetooth module without authorisation will directly invalidate compliance.

Countermeasures

• Retain complete production and purchasing records (e.g., proof of material procurement for each batch).

• Conduct an internal compliance review at least once a year.


5. Cost Optimisation and Pitfalls to Avoid

Modular certification strategy

• Use pre-certified Bluetooth modules (e.g., the Qualcomm QCC series or Nordic nRF52 series) to waive or substantially simplify RF testing.

• Choose printer designs with integrated power supplies to reduce LVD test items.

Common causes of failure

• EMC radiated emission exceeding limits:​ No ferrite core fitted on the power cable, or insufficient shielding design.

• Temperature rise test failure:​ Inadequate heat sink area or incorrect fan selection.

Selecting an EU Representative

• It is advisable to appoint a professional compliance service provider to ensure the address is physically traceable and documentation can be produced at any time upon request by market surveillance authorities.


6. Extended Certification (Optional)

• IP rating:​ For industrial environments, IP54 dust and water protection certification is optional (EN/IEC 60529).

• Energy efficiency labelling:​ Compliance with standards such as ENERGY STAR® can enhance market competitiveness.

• Battery transport safety:​ UN 38.3 (a transport requirement, outside the scope of CE).


7. Recommended Timeline

It is recommended to start the certification process 6–8 months in advance, and to communicate thoroughly with the laboratory on the test plan and sample status at an early stage, so as to avoid delays caused by rework and re-testing.
